Muffle Furnace, Muffle Furnaces, Pid Control Units, Muffle Furnace Chamber, Nasik, Maharashtra, India

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player



Muffle Furnace




Main Features:
  • Accuracy: 2C in temperature measurement & temperature control
  • Chamber walls made up of insulating fire bricks against mechanical abrasion and thermal aging and deformation.
  • Half buried heaters at two sides and top in quartz tubes. Resistance's placed in quartz tubes which rise to longer life of resistance against corrosive gases & protected against short circuit.
  • Tight door insulating thanks to spring mechanism.
  • Modular inner body; replacement and fully renewing the furnace.
  • Homogeneous temperature gradient in the chamber thanks to similar heat loss in every direction.
  • Maximized the optimum insulation (112mm) thickness to reduce the temperature of the outer surface (outer surface is not very hot, possible to touch).
  • Contact less outer shell for low surface temperature.
  • Ergonomical PID control unit placement. Operating without leaning.
  • Standard chimney with fan. Extraction of oxidizing gases which occur during the burning process and homogenous heating.
  • Adjustable foot screw.

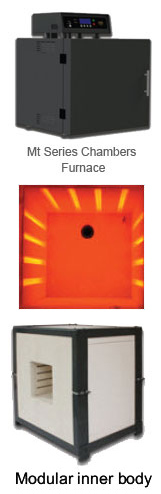

Muffle Furnace

PID CONTROL UNITS
PID control units are the most unique parts of our products. Mainly two different concepts are in service for the researchers and laboratory technicians according to application characteristics.

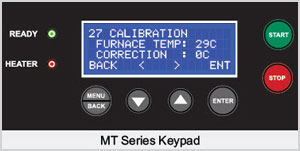

MT SERIES PID CONTROL UNIT
  • User friendly menu
  • 4 line wide display
  • 2 - 6 program memories
  • Direct or 2-16 step heating procedure
  • Heating rate: 3-20 C/min
  • Individual heating rate setting for each step
  • 1C accuracy in temperature measurement and temperature control
  • Temperature calibration via menu
  • Indicating the remaining time during the waiting step and possibility to skip the waiting
  • Auto start at the preset date and time
  • Sound warning at the step transitions and in case of errors
  • Automatic heating cut off system, in case of overheated chamber or control unit
  • Digital total heating time counter
  • Average working temperature indicator

Muffle Furnace
Chamber, Insulation Layers and Chasis

MACK UNIVERSAL, started in 2012; a sister concern company of MACK PHARMATECH PVT.LTD., which is a well-established organization for the past 15 years, with business transactions being carried out in India as well as International.

Mack Universal deals with Muffle Furnace. Mack Universal believes that we can create a business relationship by sourcing through the least cost suppliers. We are the reliable suppliers of quality equipment's to Pharmaceuticals, Chemical Plants, Universities & Petrochem Industries, Research institutes & other industries.
We are happy to announce industry's first discount offer on Muffle Furnace. We hope you all will take huge advantage of this offer. We look forward to hearing from you


SILENT FEATURES OF MUFFLE FURNACE:

  1. Magmathermfurnaces are high quality products.They have been produced for heavy duty conditions. Unique mechanical design provides long life and unique PID Control Unit provides reliability and ergonomics.
  2. Suitableforevery kind of processes like ashing, sintering, preheating, melting, oxidizing.
  3. Designed for minimal space requirements in the laboratory, thanks to the highly engineered insulation design.
  4. Easily replaceable spare parts, modular and demountable body design, fast support service turns your furnace into a very reliable investment
  5. Half buried heaters at two sides and top in quartz tubes.
  6. Tight door insulating thanks to spring mechanism.
  7. Modular inner body; replacement and fully renewing the furnace.
  8. Homogeneous temperature gradient in the chamber thanks to similar heat loss in every directions.
  9. Maximized the optimum insulation thickness to reduce the temperature of the outer surface .
  10. Contactless outer shell for low surface temperature.
  11. Standard chimney with fan.Extraction of oxidizing gases which occur during the burning process and homogenous heating.
  12. Adjustable foot screw.
  13. 7 liters capacity
  14. Inner dimensions: 180W x 160H x 260D & Outer dimensions: 476W x 628H x 655D in mm
  15. GMP Model (Inner body: ceramic bricks & outer body: SS 304.)
  16. Micropocessor based PID controller system with 2 RAMP 2 SOAK facility
  17. Printing facility through software only
  18. Heating Upto 1150 deg C maximum (Range 500 – 1200 deg C)
  19. ±1 °C control accuracy.
  20. Own unique electronic design and softwares
  21. 1 year AMC included with Calibration – 1 hour@ 1 set point & Validation – 2 hours for 2 set pointsi.e. 500 & 1150 deg C only
  22. Imported – Tetra ISI Systemleri, Turkey based Muffle furnace and Electric Control System by Mack Universal, India.
  23. 15 months warranty against delivery date
  24. Qualification Documentation by Mack Universal (DQ, IQ, OQ & PQ)
  25. Wooden packaging : free of cost

Flat 25% discount on MRP = ₹ 3,14,000/- i.e. Final discounted rate is ₹ 2,35,500/-
Note:
  • *Warranty applies only for this model
  • Only for stock model
  • No more discount / Fix price
  • Payment: 50% Advance + 40% against proforma + 10% After Installation
  • Transportation as actual (Under customer scope)
  • Taxes as actual (Under customer scope)
  • Extra set points for calibration & validation will cost extra charges
  • Get extra discount on exchanging your old muffle furnace.
  • Prices are applicable only for India.
